Popis

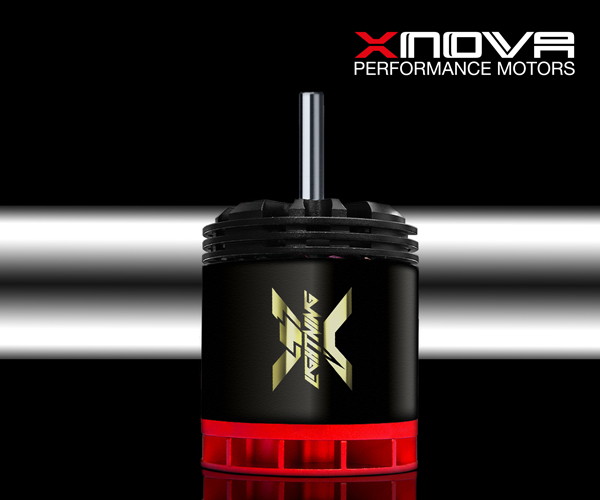

NEW! Xnova 3225-1100kv Lightning motor
The 3225 lightning is a brand new powerhouse. Any helicopter asking for insane power swinging 420-500mm blades will be supperhappy with this masterpiece. The Xnova lightning series is the highest level of motor performance money can buy nowadays.
Xnova brushless high performance outrunner motor designed for extreme hard 3D, running in 420-500mm bladesize helicopter where highest power to weight ratio is important.At the same time this motor is also extreme efficient!
Improved higher efficiency with thinner stator lamination, designed with integrated cooling system resulting in lower temperature.
Increased power output by use of thicker hand wound YY single strand copper wires, heat resistant up to 250 degrees C.
New type of high-performance neodymium magnets, heat resistant up to 150 degrees C resulting in overall better performance.
100% handwound. Slots & Poles 12n10p
Winding T YY
rpm/V 1100
Volt (V) 10 / 22.2
Io(A) 3.1 / 5.1
Rm (mohm) 10 / 10
Weight (without connector) (g) 240
Body Length (no shaft) mm 50
Diameter (mm) 40.5

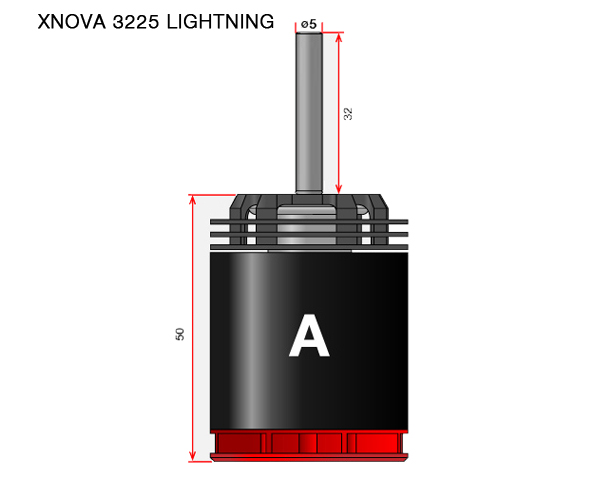

Shaft Length (mm) (Details pictures) A
Shaft Dia. (mm) 5
Mounting Holes CTC Distance (mm) 25
Mounting Screw M3x0.5
Max Eff. Curr. 55.68 / 106.40
Max Eff. 88.86 / 90.41
Kt (Nm/A 0.0087
Km (Nm/sqrt(w)) 0.0868
Max Continuous Power(Watts) 1900
Peak Continuous Power(Watts) (2 sec) 2500
Max Continuous Current(Amps) 86
