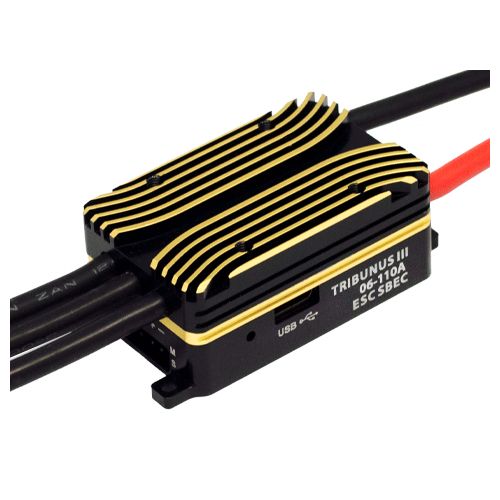

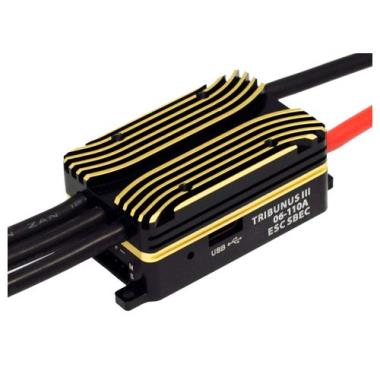

Scorpion TRIBUNUS III 06-110Amp (SBEC) Brushless speed controller for Helicopters, Airplane
So what is new about this ESC? All new PCB and Case design which takes performance and functionality to the next level.
Improved heat Dissipation-Cooler operation and longer product life
Integrated mounting Tabs- easy Mounting
Enclosed capacitors- MORE DURABILITY
2 TONE anodizing- make it looks bling good
The programmable build in Bec can provide 10Amps continuous and 20Amps peak to provide constant power to your board systems with Voltage levels of 5-12V
Temperature controlled Fan port
Included cooling fan activates when temperature rises and deactivated when it falls, to reduce operational temperature in use without unwanted noise.

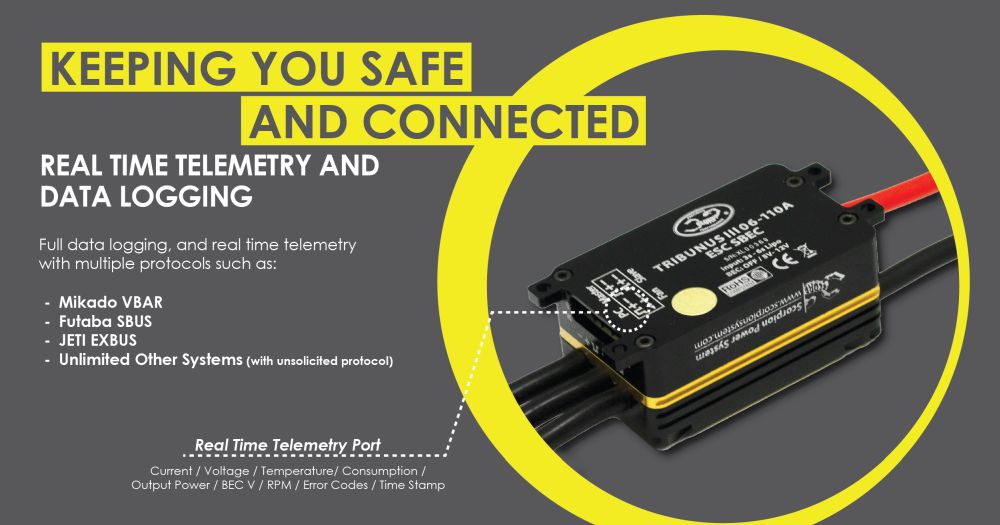

Real time telemetry and Full data Logging supporting protocols such:
Mikado Vbar
Futaba Sbus
Jeti EX bus
Other systems- with unsolicited protocols
usb-C PROGRAMMING port, via Proto
Helicopter mode and Airplane mode, to be more dedicated to the right model
Internal governor- RPM control
external governor- integration with Vbar, futaba, others
for Airplanes- Throttle acceleration and top end power
Break settings
Specifications
Max Continuous Current 110 Amps
Peak Current 150 Amps
Operating Voltage Range 11-26.1 Volts
BEC Output voltage: 5.1V to 12.1V adjustable
Max Continuous BEC Output 10 Amps @ 8.1 V
Peak BEC Output 20 Amps/1s @ 8.1 V
On Resistance 0.45mohms * 2
ESC Body Size 32.0 x 52.5 x 23.1 mm (1.26 x 2.07 x 0.91 in)
Mounting Tab Dimensions 16.0 (Battery Side) / 24.0mm (Phase side) x 58.0mm ( 0.63 / 0.94 x 2.28 in) / M2.5 Bolt
Weight (Without Connectors) 105g ( 3.70oz)
Drive frequency 8kHz - 32kHz
Included in the Box
1 x Tribunus III ESC
1 x 30mm Cooling Fan
2 x BEC Cables
