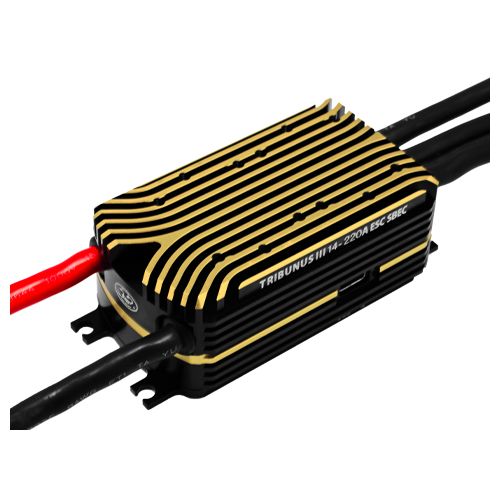

The Tribunus III 14-220A ESC marks a new era of electronic speed controllers from Scorpion Power Systems. Utilizing all Western Components and manufactured in Taiwan, this next generation ESC delivers exceptional capabilities with significant improvements over our previous models. Combining our proprietary and unique design, with our proprietary motor control algorithm, we provided one of the most reliable, safe, capable, and intelligent ESCs on the market for your hobby aircraft or industrial UAV.
Newly added USB port for PC connection with/without a main power source Improved BEC Protection
Improved Cooling and Capability
Enclosed capacitors
Ultra Strong 5V-12V BEC
Integrated Mounting Tabs
Temperature Controller Fan Port
Airplane and Heli mode.
Stored and unstored Governor, external governor.
Data Logging, Data output port for external data logging device, such as Mikado V control / Vbar combinations. Jeti Telemetry, JLog 3 (more compatible device will be added gradually like Futaba..etc.)
ESC setup can be set by Mikado V control Radio.
PC connectivity, Android connectivity (OTG cable needed), V link II Cable (optional) plus Diode adaptor (included) cable needed.
Supported HvLi battery 14S total 61V.
Specifications:
Max Continuous Current* / 220 Amps
Peak Current / 300 Amps
Operating Voltage Range / 13-61 Volts
BEC Output voltage: / OFF / 5.1V to 12.1V adjustable
Max Continuous BEC Output / 15 Amps @ 8.1 V
Peak BEC Output / 30 Amps/1s @ 8.1 V
On Resistance / 0.55mOhms*2
ESC Body Size / 46.1 x 80.7 x 32.3 mm (1.81 x 3.17 x 1.27 in)
Mounting Tab Dimensions / 26.0 x 89.0mm ( 1.02 x 3.50 in) / M3 Bolt
Weight (without wires) / 194g ( 6.84oz)
Weight (With wires) /294g ( 10.37oz)
Drive frequency / 8kHz - 32kHz
*Max Continuous Current is the rating at 100% throttle for 60 seconds with 35m/s of airflow
Included in the Box:
1 x Tribunus III ESC
2 x BEC Cables (410mm)
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor
